产品中心Product Center
以下规格为常规制造范围，实际供货以技术协议为准。所有产品均可按介质、流量、精度、温度、压力与接口定制。The specifications below are standard manufacturing ranges; final supply is subject to the agreed technical specification. All products can be customized by medium, flow, rating, temperature, pressure and connection.
楔形丝过滤元件Wedge Wire Filtration Elements
V 型（楔形）不锈钢丝缠绕在支撑杆上逐点焊接，形成外窄内宽的梯形缝隙。相比编织网与冲孔板，楔形丝结构强度更高、缝隙不易堵塞、反冲洗性能更好，适合高精度与高磨损工况。V-shaped stainless steel wire is wound onto support rods and welded at every intersection, forming a trapezoidal slot that is narrow outside and wide inside. Compared with woven mesh and perforated plate, wedge wire offers higher structural strength, less clogging and better backwash performance — suited to high-precision and high-wear duties.

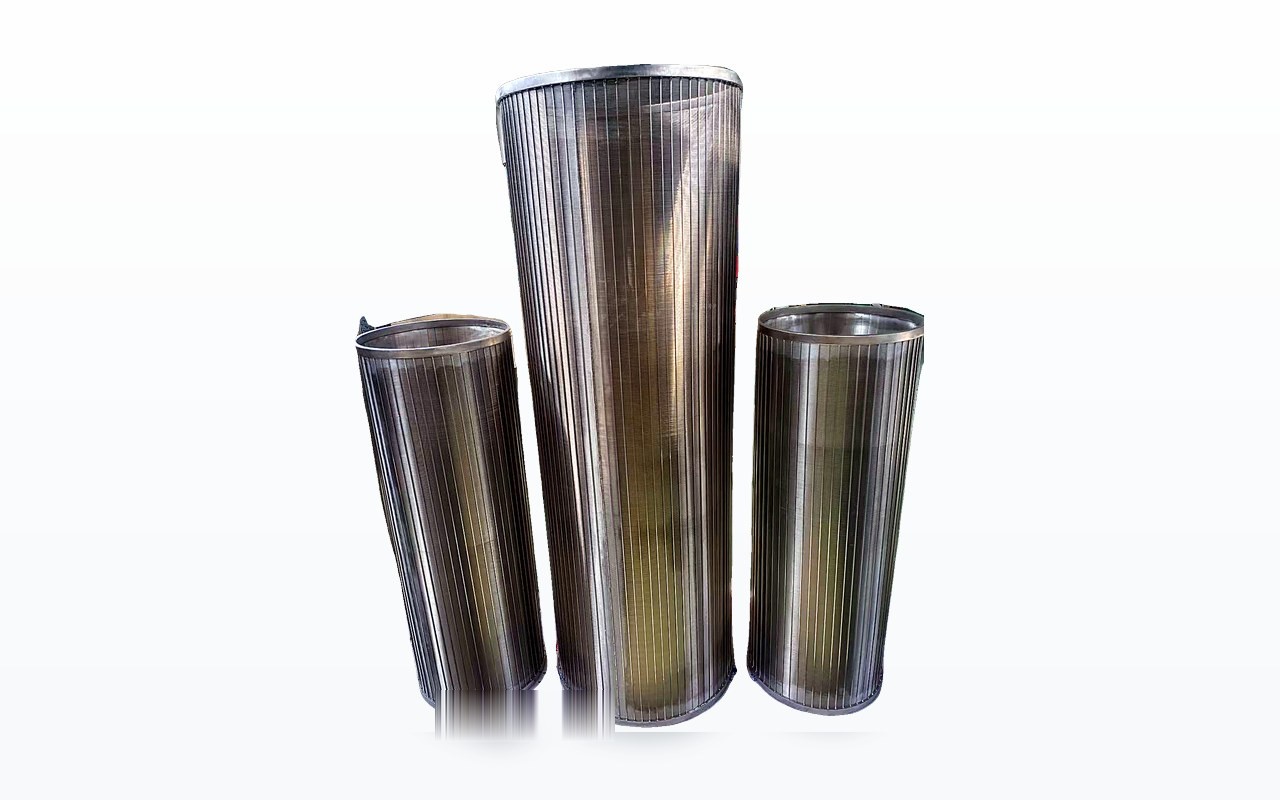

楔形丝筛管 / 约翰逊筛管Screen Tubes / Johnson Screens
圆柱形绕丝筛管，用于水井、油井、过滤与布水。可做螺纹、法兰、封闭板等端部接口。Cylindrical wound screens for water wells, oil wells, filtration and distribution. Threaded, flanged or closed-plate ends.

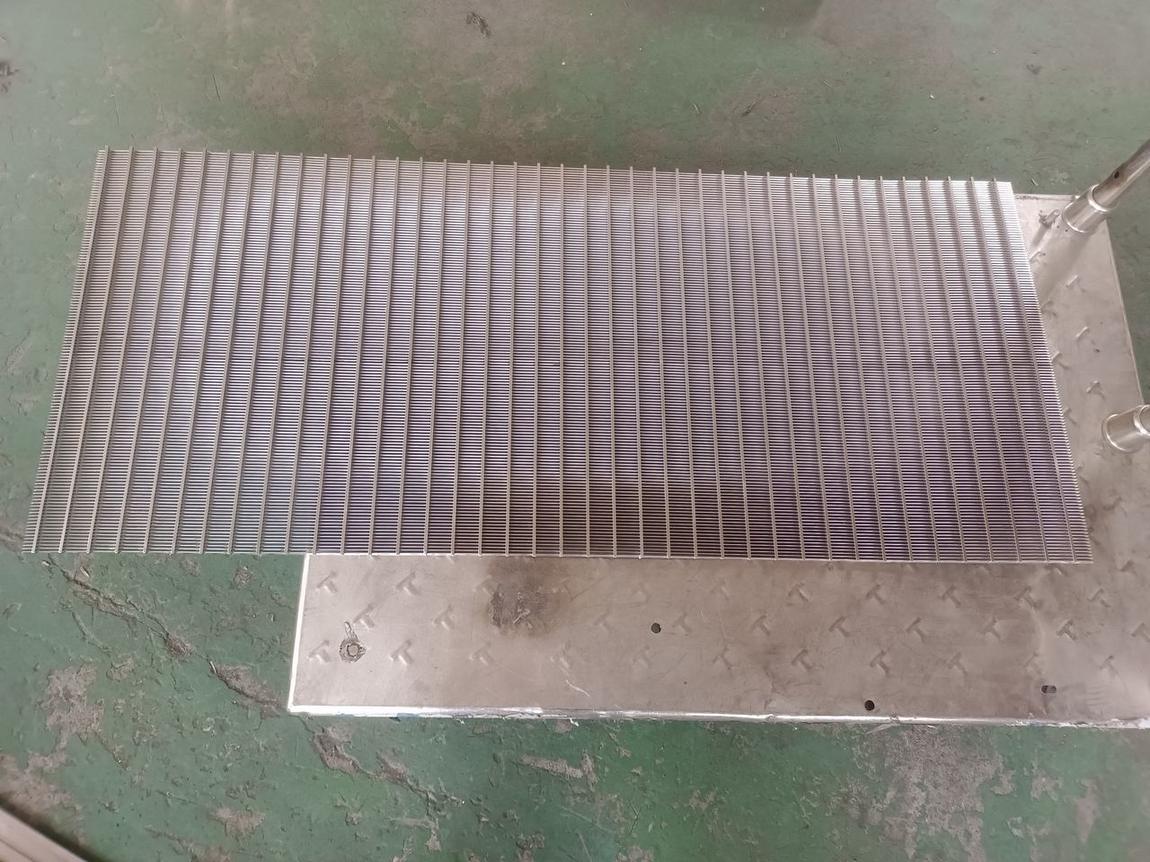

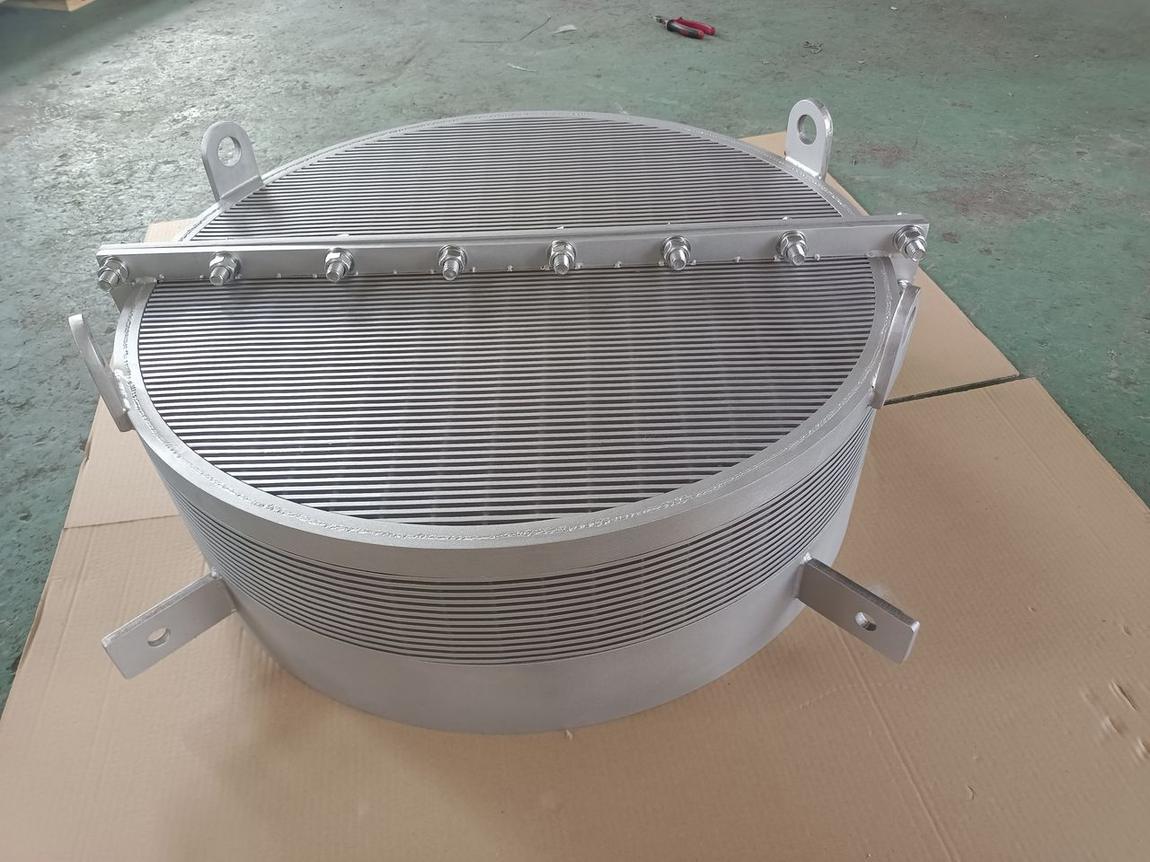

楔形丝筛板 / 条缝筛板Flat Panels / Slot Panels
平面焊接筛板，用于弧形筛、脱水筛、振动筛面与粮谷筛分。Flat welded panels for arc screens, dewatering decks, vibrating screen surfaces and grain screening.

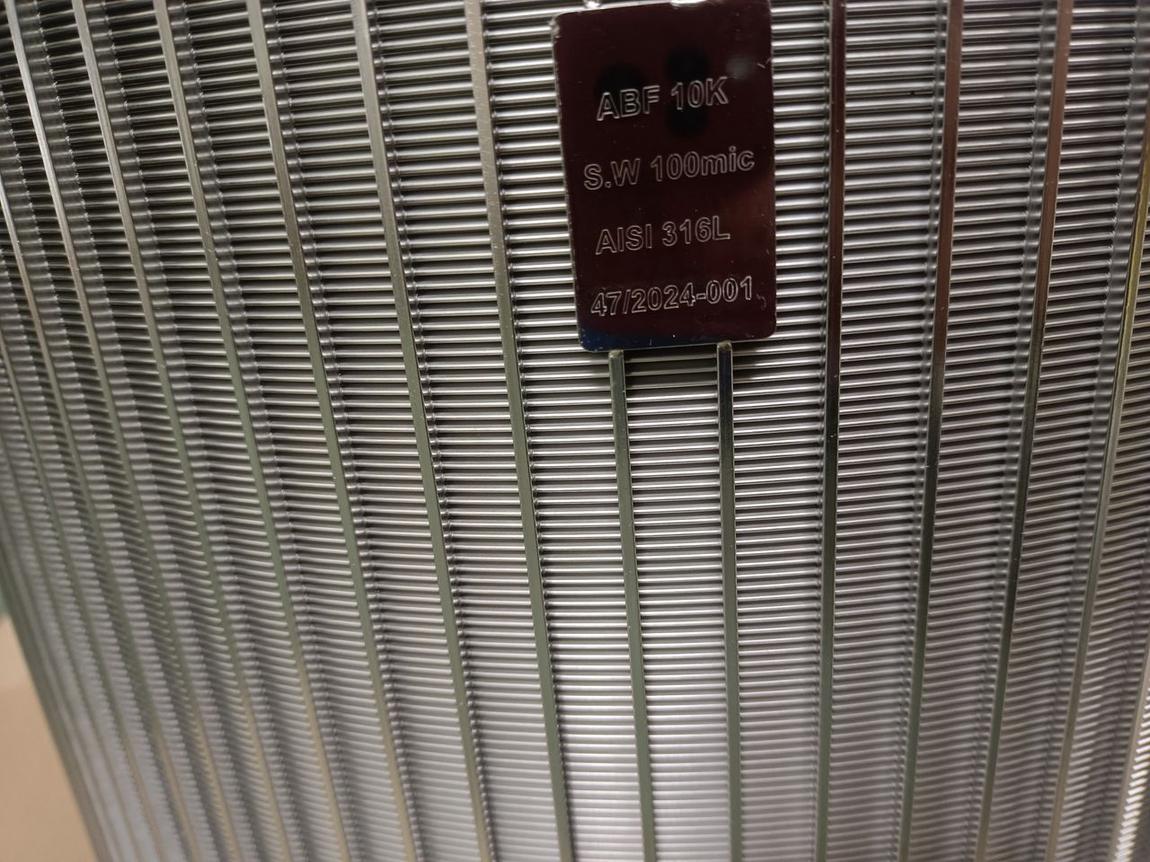

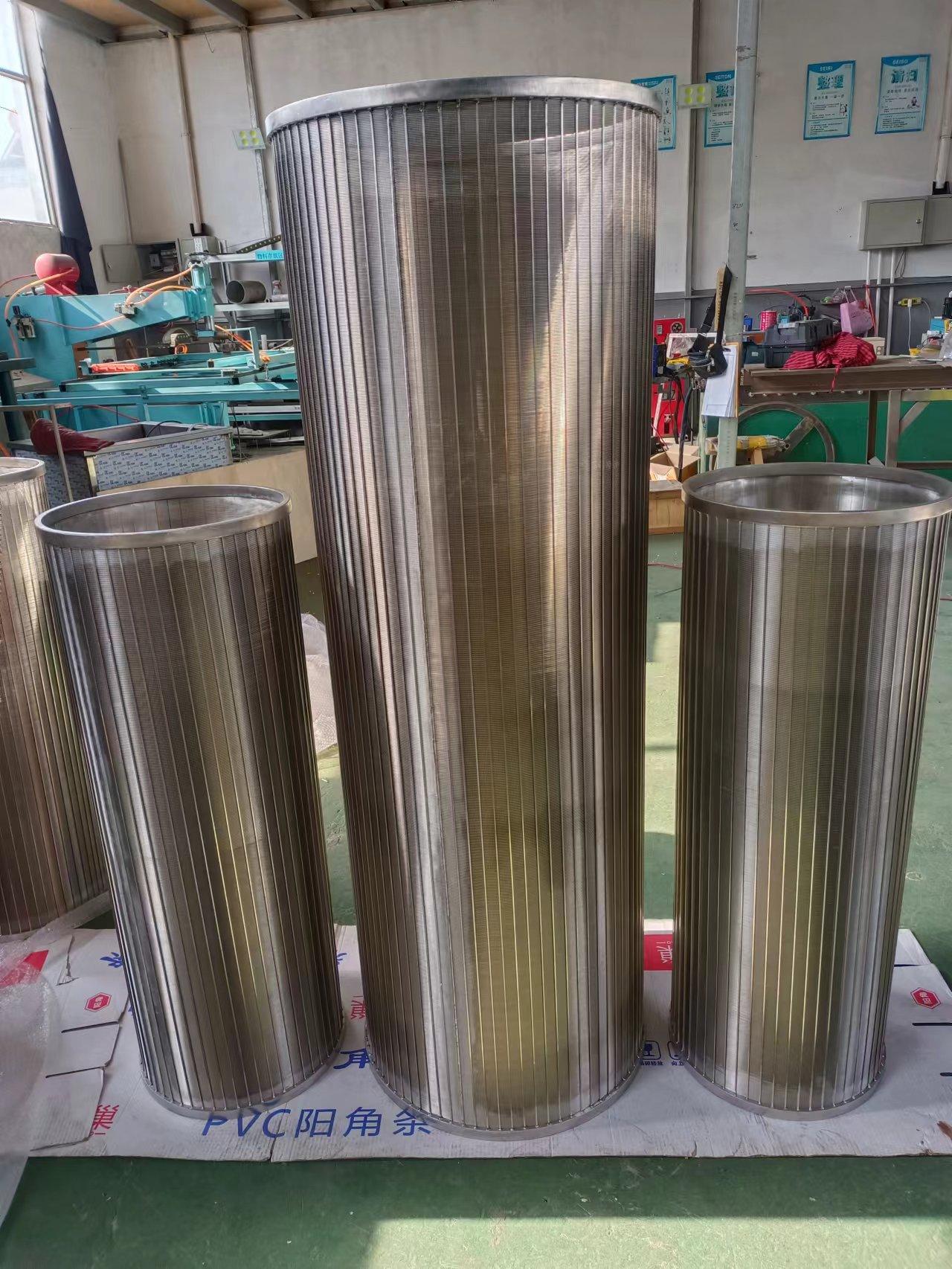

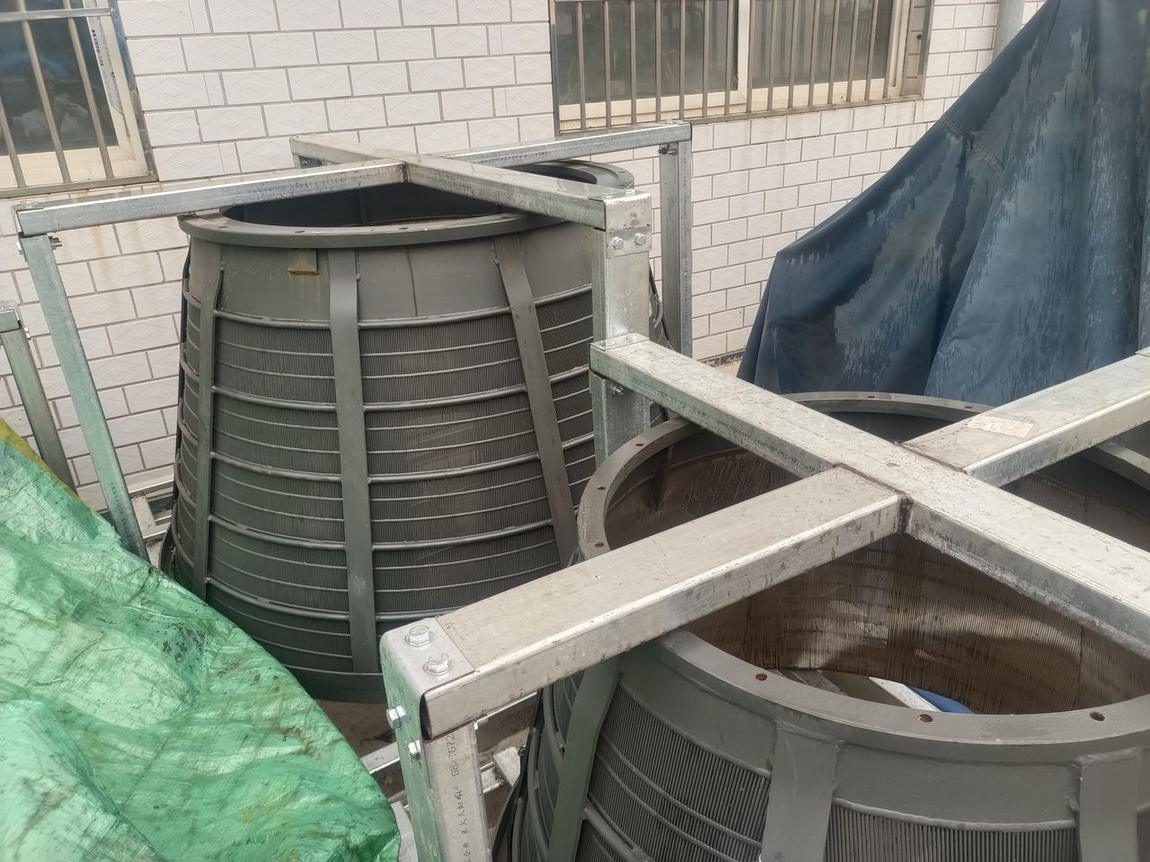

楔形丝筛筒 / 反卷筛筒Cylinders / Reverse-Rolled

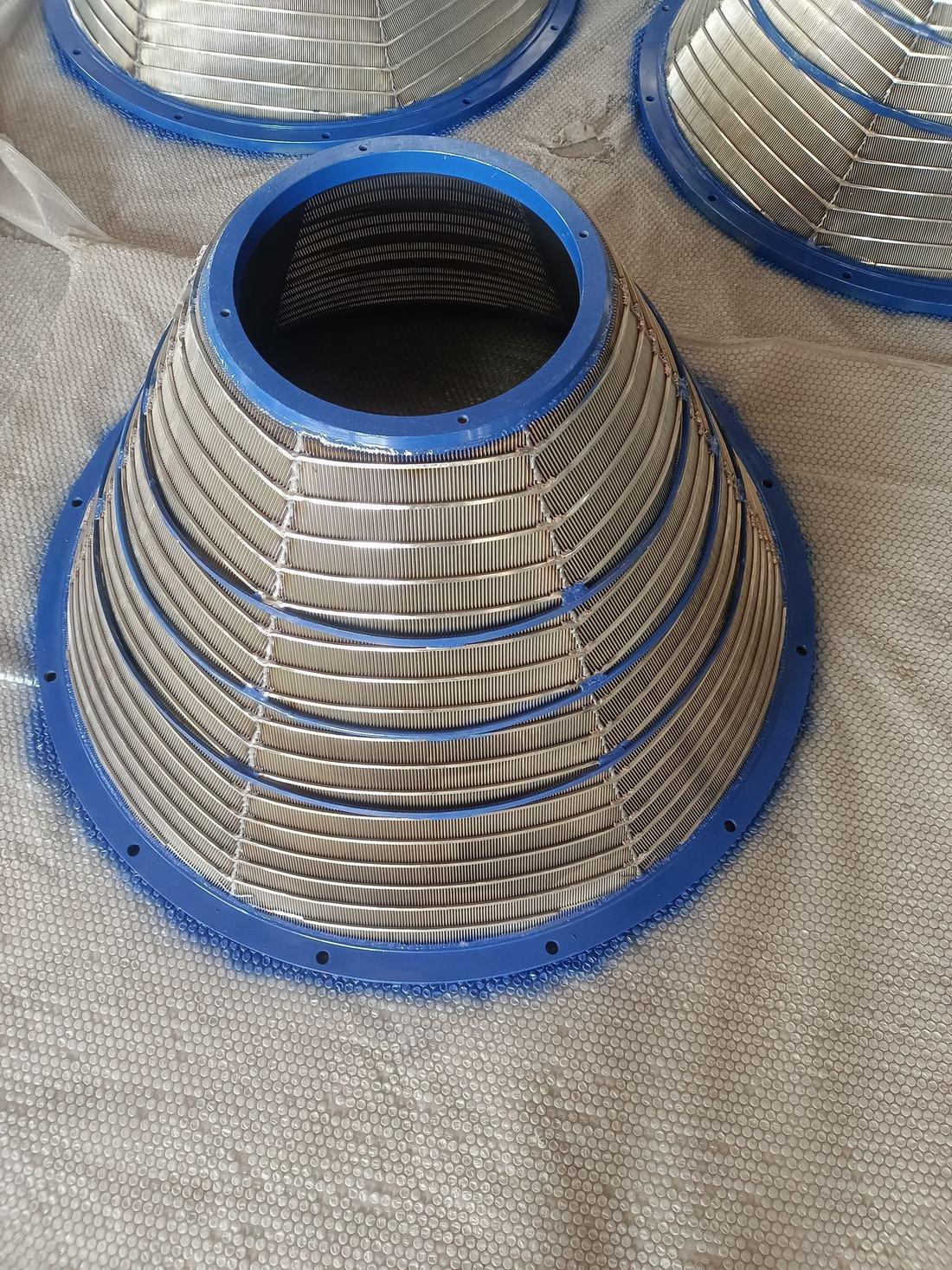

正卷与反卷结构，用于过滤器内芯、离心筛篮与转鼓筛。Forward and reverse-rolled constructions for filter cores, centrifugal baskets and rotary drums.

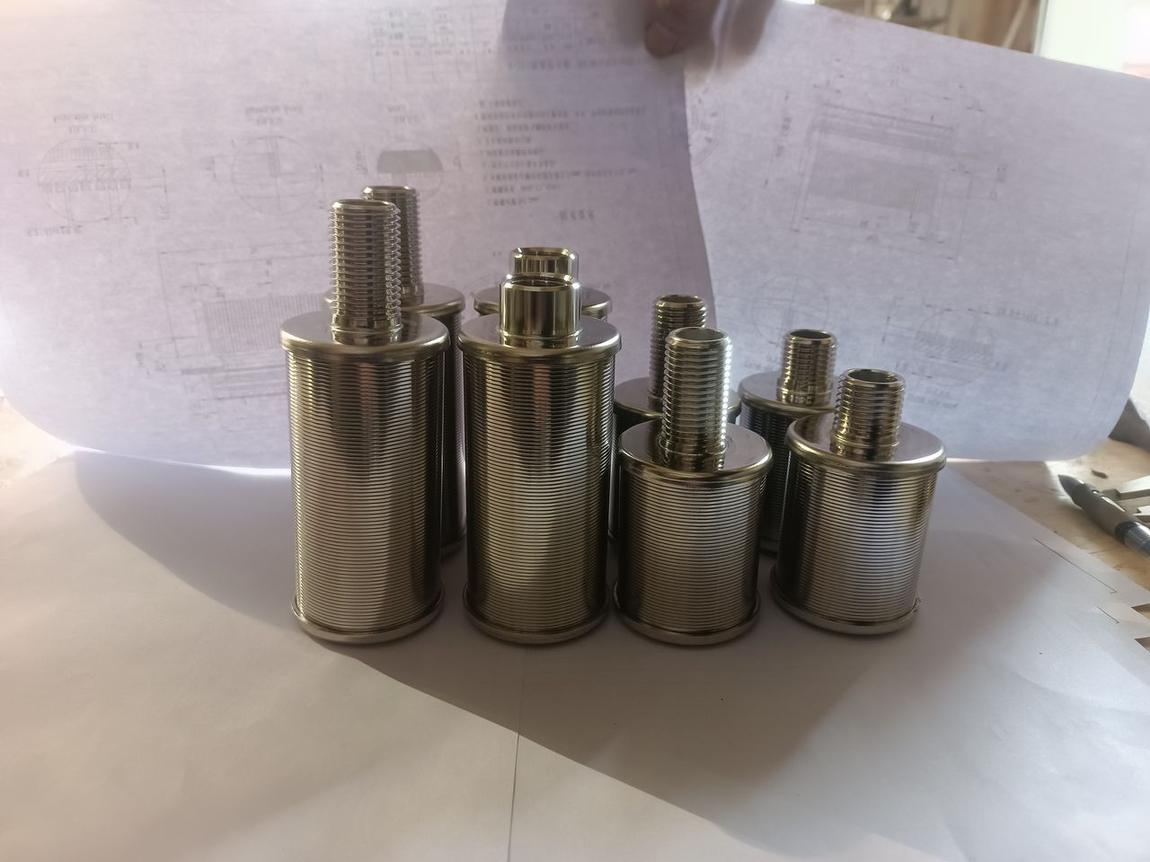

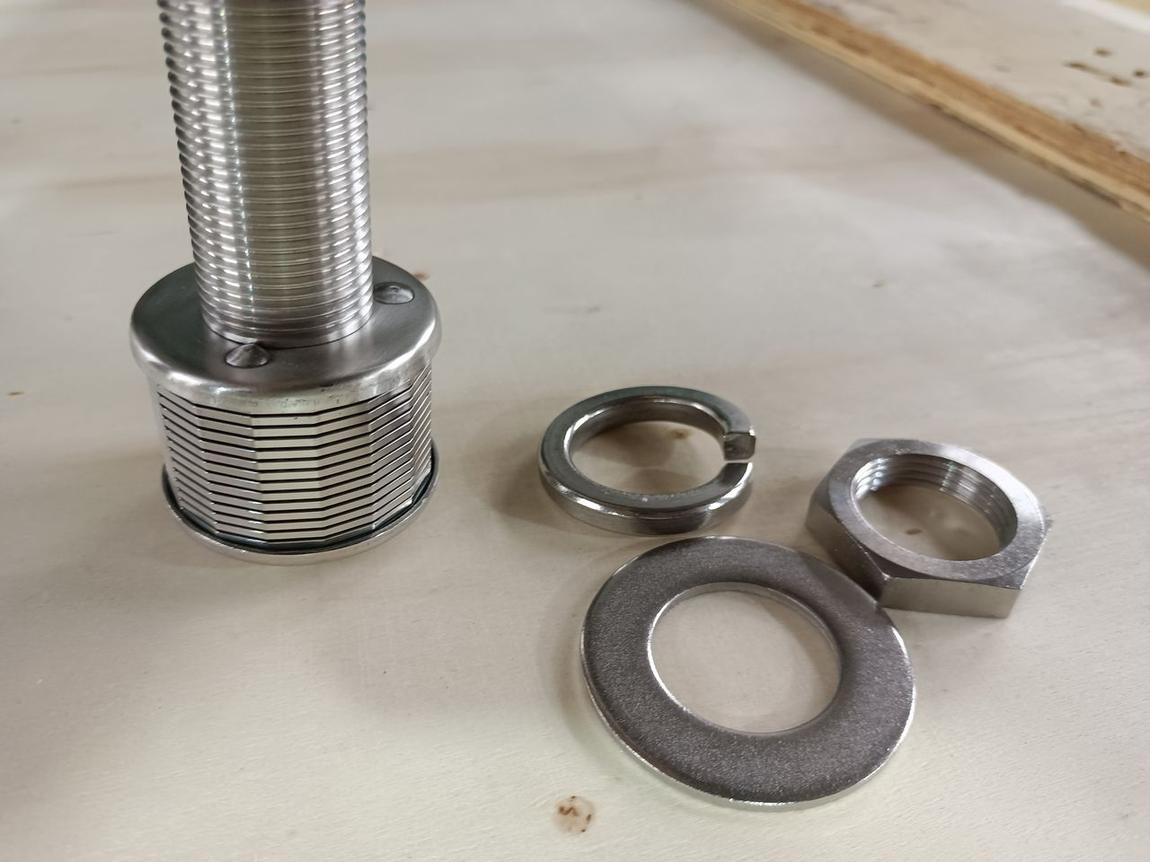

不锈钢水帽Water Caps / Nozzles
长柄、双头、单流速、双流速水帽，含 904L 甲乙酮水帽，用于离子交换与污水过滤罐。Long-handle, double-head, single-rate and dual-rate caps, including 904L types for ion exchange and wastewater filter vessels.
布水器 / 中排装置Distribution Headers / Tray Internals
鱼骨式侧向布水器、罐体用楔形丝中排，实现均匀布水与集液。Herringbone lateral headers and vessel tray internals for uniform distribution and collection.
树脂捕捉器Resin Traps
在线拦截随水带出的树脂颗粒，防止树脂进入下游系统影响运行。Inline retention of resin carry-over to prevent particles entering downstream systems.
楔形丝过滤元件 · 常规技术参数Wedge Wire Elements — Standard Specifications
| 参数项Parameter | 范围 / 选项Range / Options |
|---|---|
| 材质Material | SS304 / SS304L / SS316 / SS316L / SS321 / 双相钢Duplex / 哈氏合金Hastelloy |

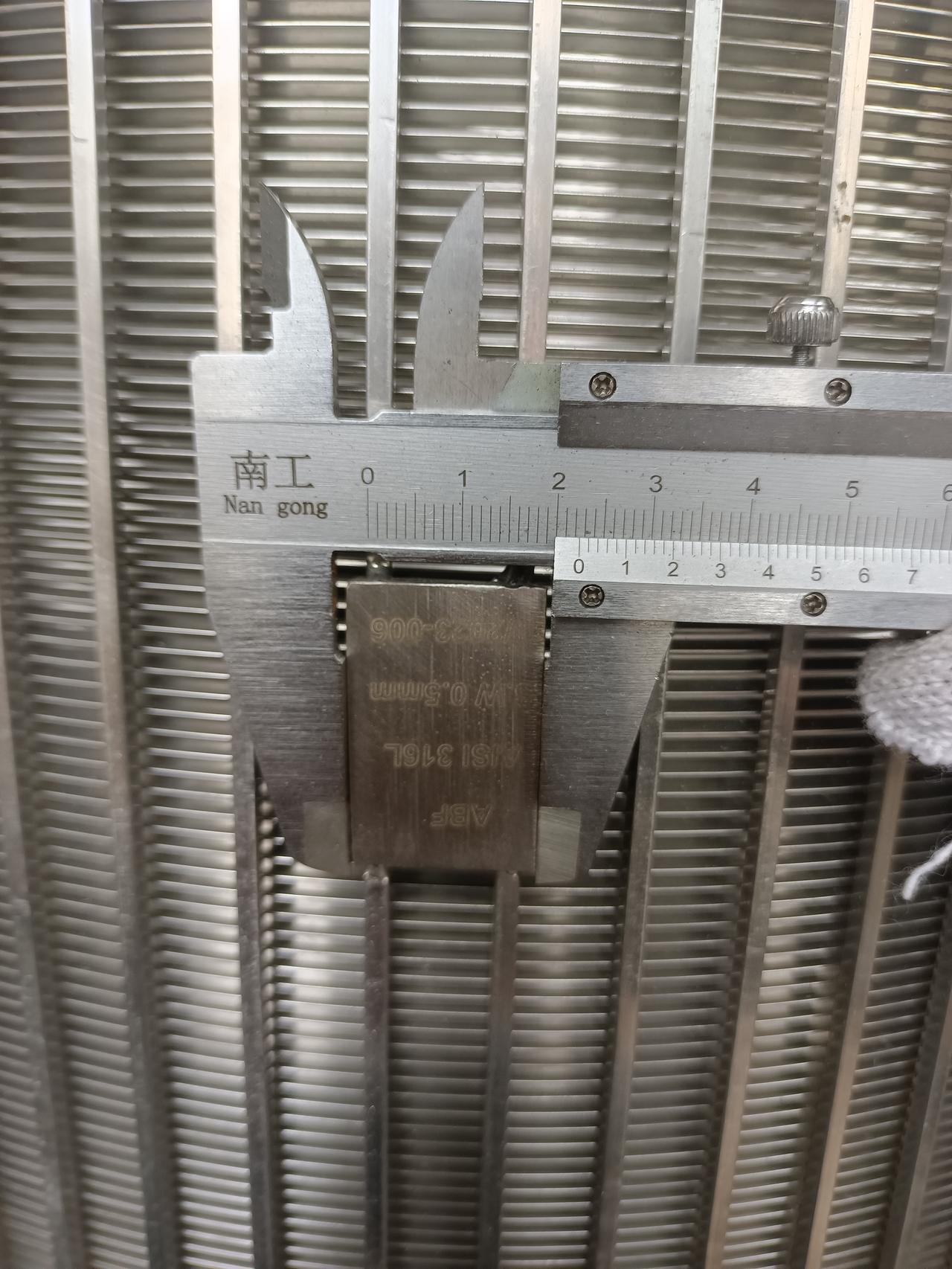

| 筛缝范围Slot Opening | 20 μmμm – 3000 μm（公差 ±5 μmtolerance ±5 μm） |
| 筛管外径Tube OD | 19 mm – 2000 mm |
| 筛管内径Tube ID | 13 mm – 1981 mm |
| 单件长度Piece Length | 最大 6000 mmUp to 6000 mm |
| 楔形丝规格Profile Wire | 0.5×1.5 / 0.75×1.5 / 1×2 / 1.5×2 / 2×3 / 2×4 / 3×5 |
| 支撑杆规格Support Rod | 1.5×2.5 / 2×3 / 1.8×2.5 / 3×5 / 3×6 / 3×10 / 4×7 / 5×6 / 5×8 |
| 端部处理End Finish | 螺纹接头、法兰、封闭板、电阻焊封闭板、金属环等（可定制）Threaded fitting, flange, closed plate, resistance-welded plate, metal ring etc. (customizable) |
说明：以上为标准制造范围，特殊规格可按图纸定制。选型时建议提供介质名称与颗粒特性，以便确定合理的筛缝与开孔率。 Note: the above are standard manufacturing ranges; special sizes can be produced to drawing. Provide the medium name and particle characteristics so that a suitable slot opening and open area can be determined.
过滤器与滤壳Filters & Housings
滤壳是容纳滤袋、滤芯或滤篮的压力容器。选择哪一类，取决于过滤精度、流量、清洗方式与是否允许停机。A housing is the pressure vessel that holds a bag, cartridge or basket. The choice depends on filtration rating, flow rate, cleaning method and whether shutdown is acceptable.

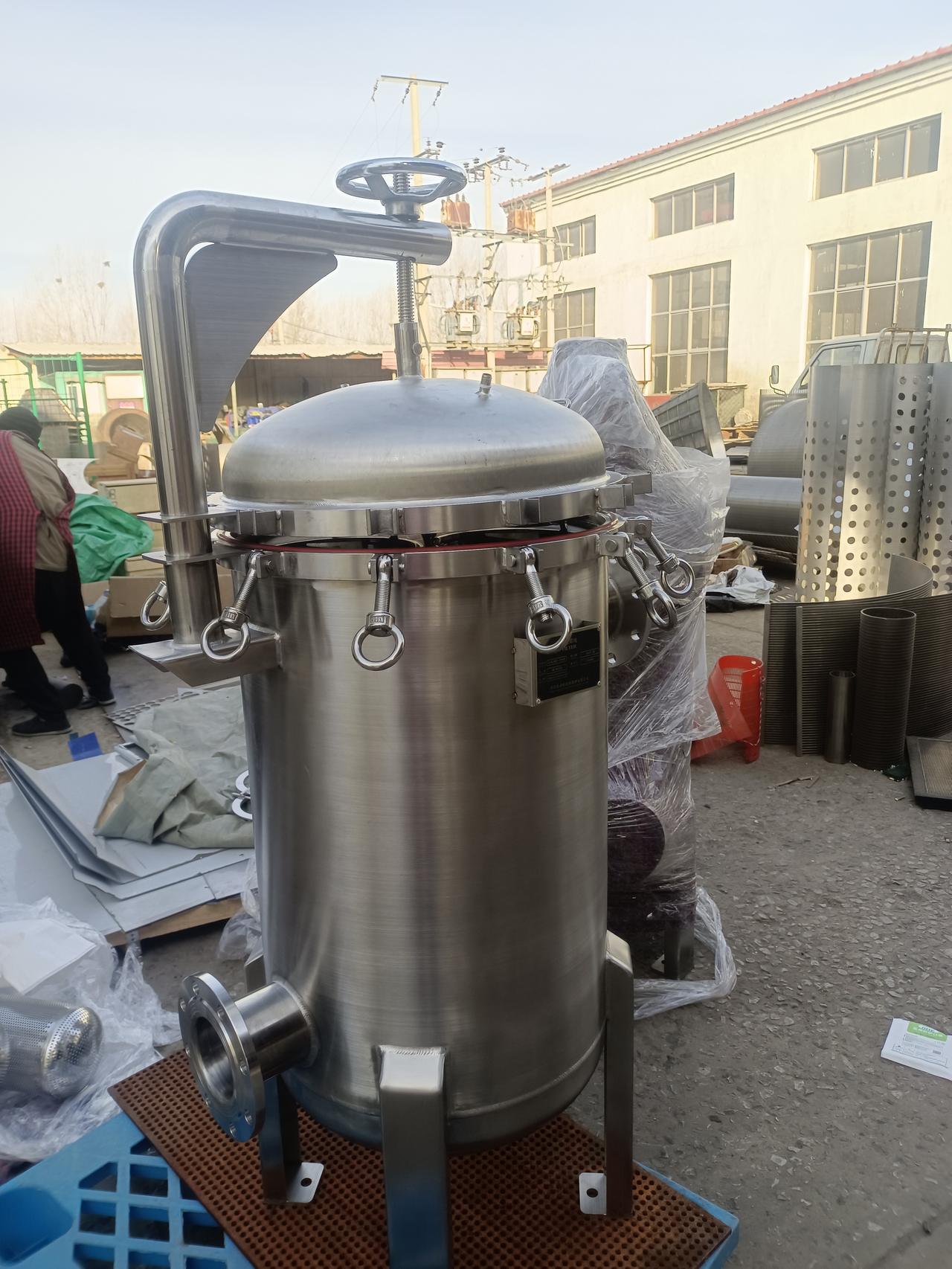

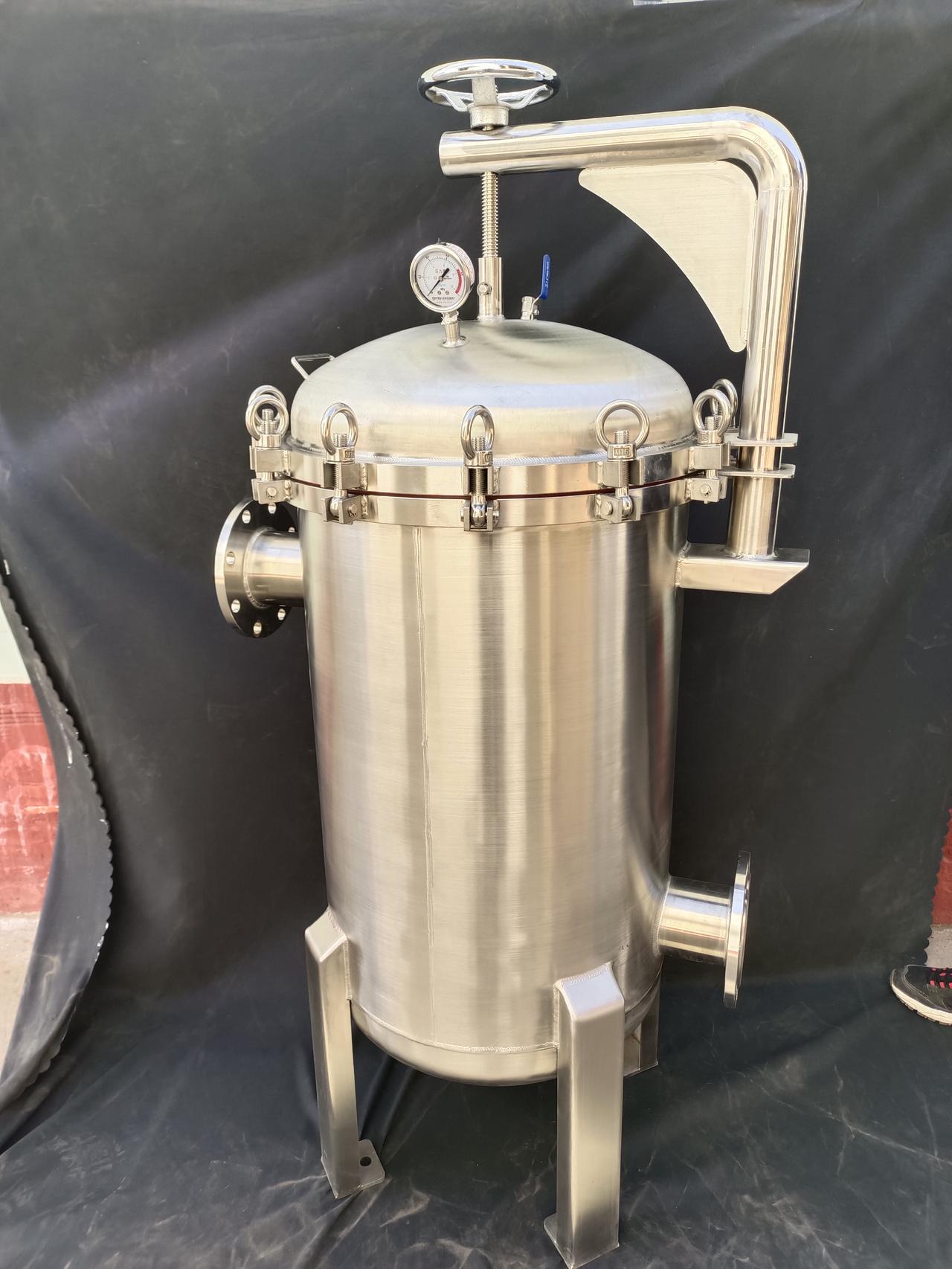

袋式过滤器Bag Filters
单袋与多袋，大流量、更换便捷、成本可控Single and multi-bag; high flow, quick change, cost effective

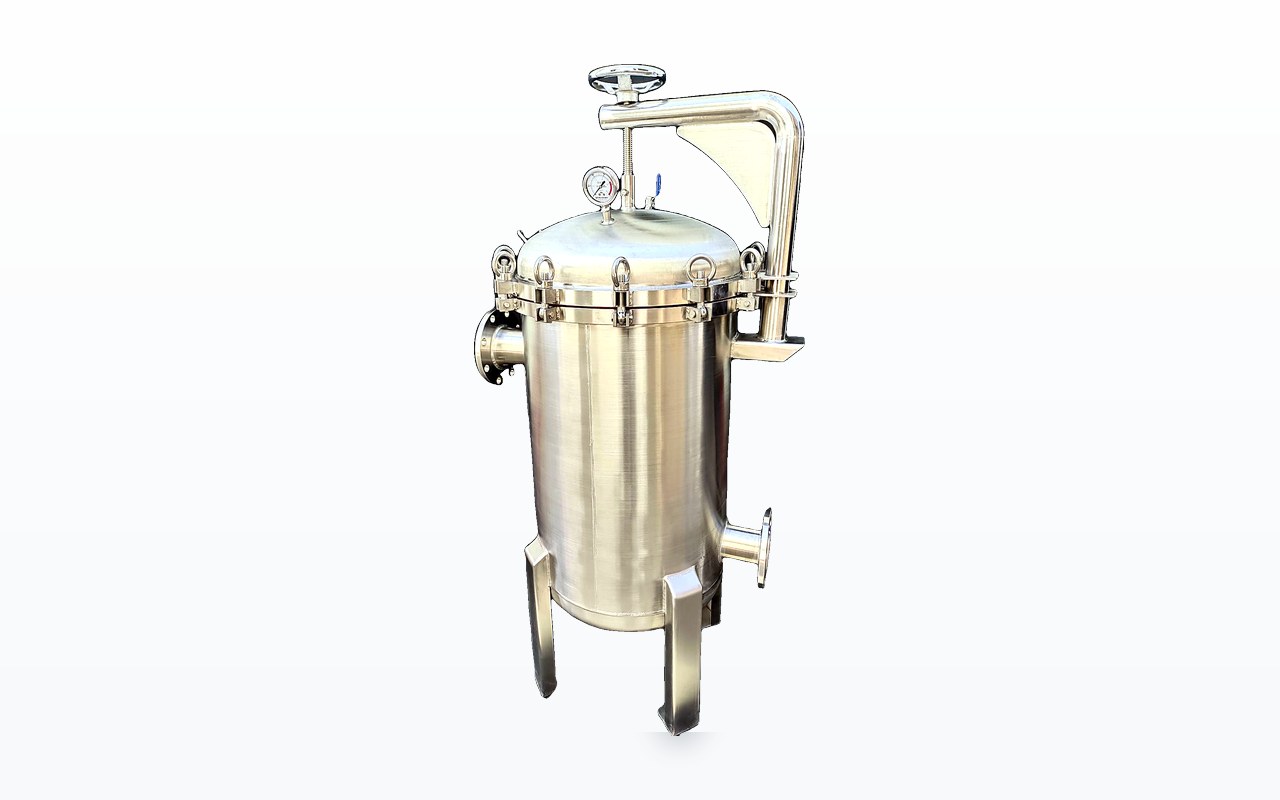

- 单袋过滤器：中小流量、单点过滤Single-bag: medium/low flow, single-point filtration
- 多袋过滤器：大流量并联，减少占地面积Multi-bag: parallel high flow with smaller footprint
- 适用：涂料、油品、化工液体、循环水For coatings, oils, chemical liquids and circulating water
- 材质：SS304 / 316L，内表面可选抛光Material: SS304 / 316L, internal polish optional

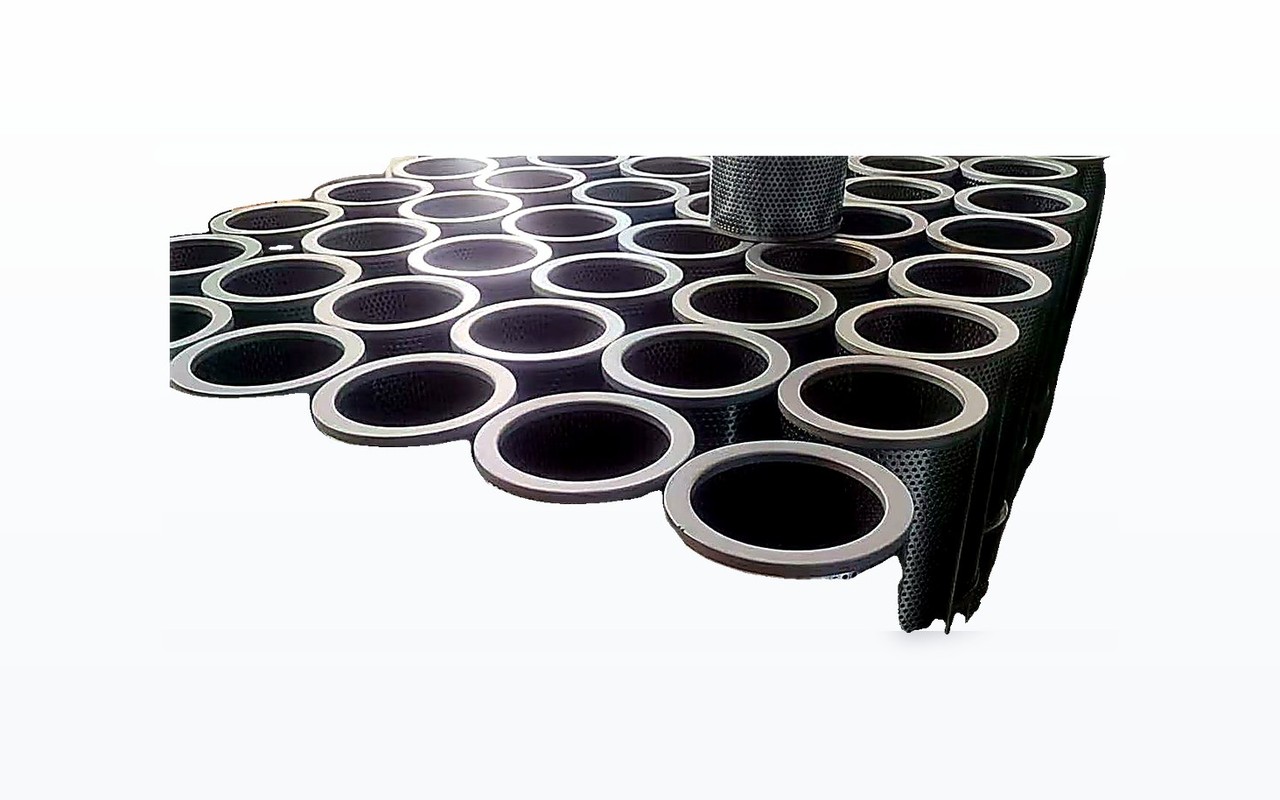

芯式过滤器Cartridge Filters
单芯与多芯，精度高、组合灵活Single and multi-cartridge; fine rating, flexible combinations
- 单芯过滤器：小流量、精密过滤Single cartridge: low flow, precision filtration
- 多芯过滤器：3/5/7/9/… 芯，按流量配置Multi-cartridge: 3/5/7/9/… elements sized to flow
- 滤芯可选 PP、折叠丝网、烧结、活性炭Elements: PP, pleated mesh, sintered, activated carbon
- 适用：制药、食品、电子、精细化工For pharma, food, electronics and fine chemicals
烛式过滤器Candle Filters
滤布包裹烛芯，滤饼可干排Cloth-wrapped candles with dry cake discharge
- 适合高含固量、细颗粒、难过滤物料For high-solids, fine-particle and hard-to-filter slurries
- 密闭过滤，适合有毒、有气味、腐蚀性介质Sealed operation for toxic, odorous or corrosive media
- 可加装自动控制，实现循环过滤与排渣Automation available for cyclic filtration and discharge
篮式 / 双联 / 临时过滤器Basket / Duplex / Temporary
粗过滤与不停机切换Coarse filtration and non-stop switching
- 篮式过滤器：管路粗过滤，拦大颗粒杂质Basket: pipeline coarse filtration of large debris
- 双联过滤器：一用一备，清洗不停机Duplex: duty/standby, cleaning without shutdown

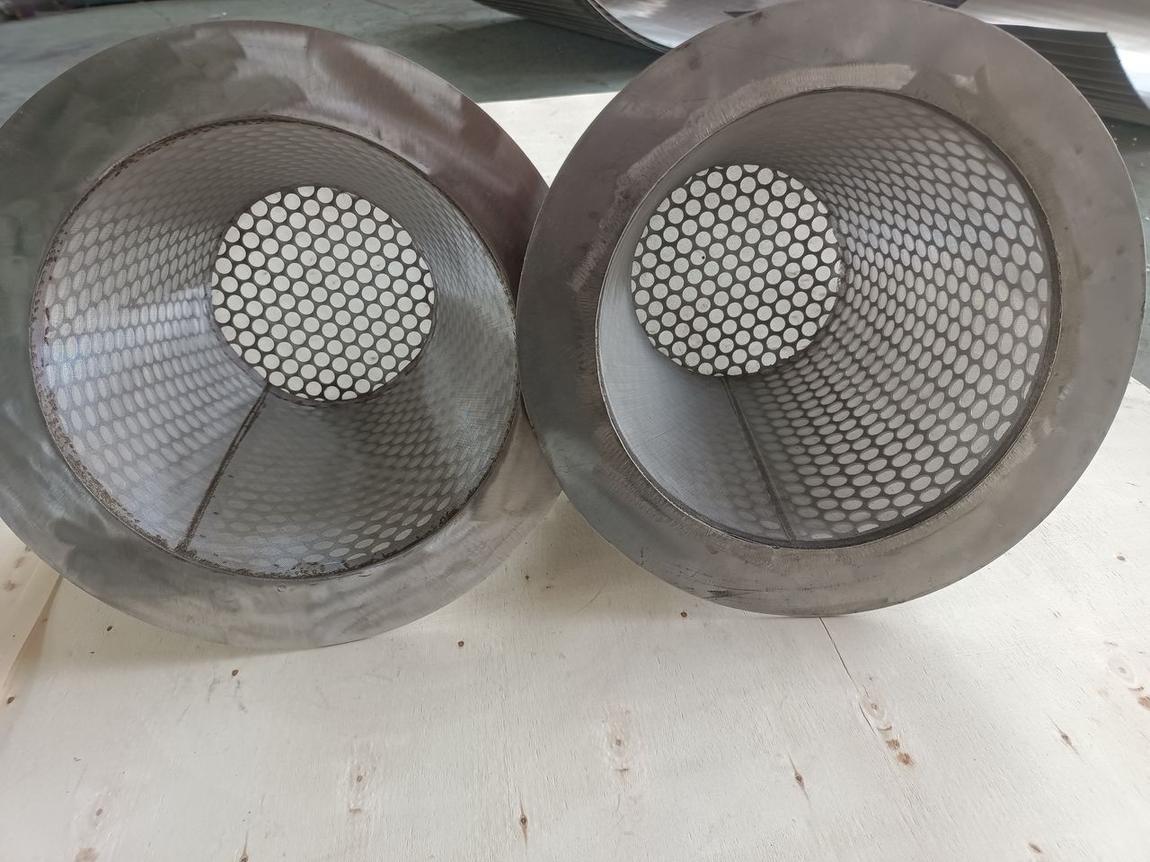

- T 型 / 锥型临时过滤器：开车冲洗用T-type / conical temporary: for commissioning flush

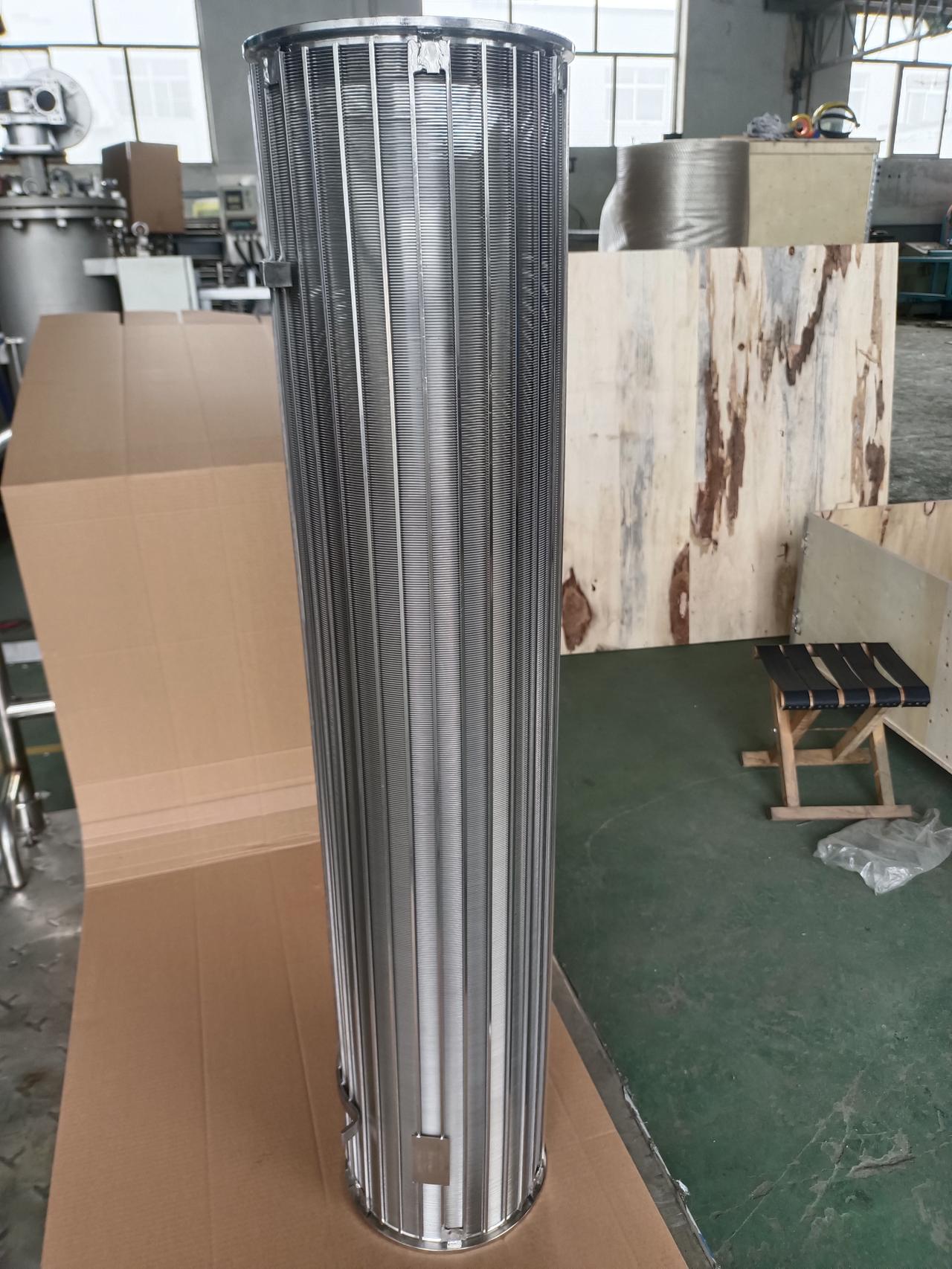

自清洗过滤器Self-Cleaning Filters
当人工清洗成为瓶颈时，用机械或反冲洗方式在线除渣。压差与时间双重控制，减少停机与耗材。When manual cleaning becomes the bottleneck, mechanical or backwash cleaning removes debris online. Differential-pressure and timer dual control reduces downtime and consumables.

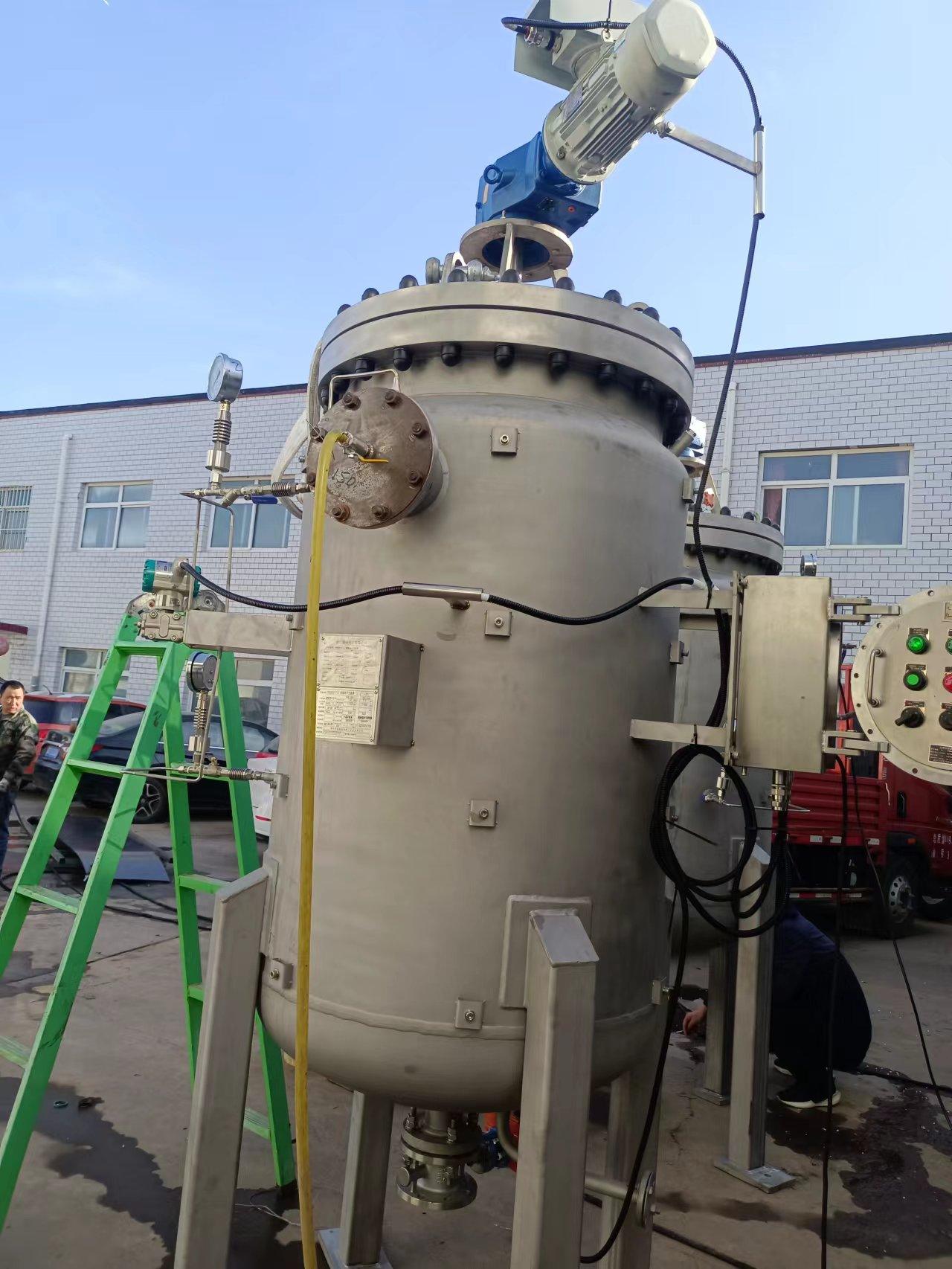

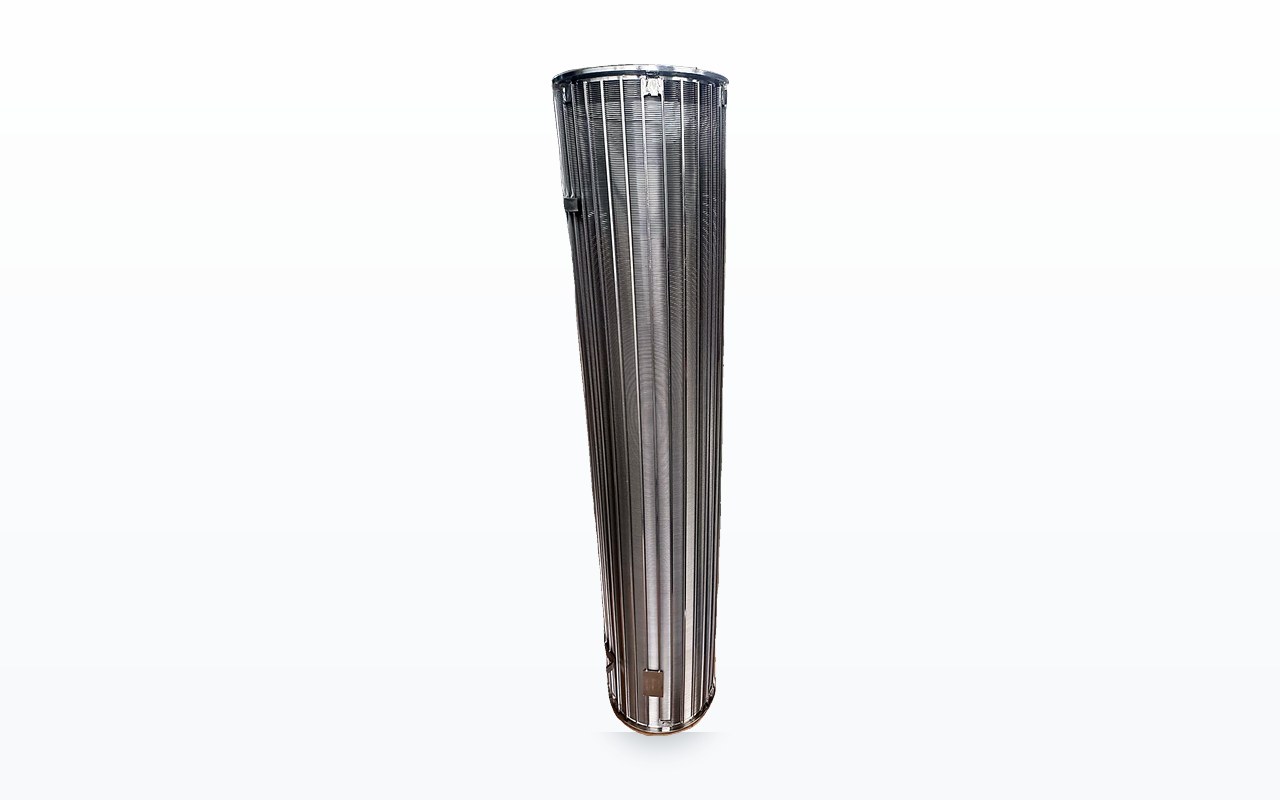

刮刀式 / 刮盘式自清洗Scraper & Scraper-Disc Types
机械刮除滤网内壁杂质，适合粘性物料Mechanical scraping of the screen ID — suited to viscous media
- 刮刀沿筛筒内表面刮除颗粒并排出Blade scrapes particles along the screen ID and discharges
- 过滤过程不中断，适合连续生产Filtration continues uninterrupted — good for continuous production
- 适用：树脂、涂料、胶体、糖浆、聚合物For resins, coatings, colloids, syrups and polymers
吸吮式 / 全自动反冲洗Suction & Automatic Backwash
反冲洗再生，耗水量低，适合大流量Backwash regeneration with low water consumption — for high flow
- 流速范围 1–5000 m³/h，精度 25–3000 μmFlow 1–5000 m³/h, rating 25–3000 μm
- 压力 0–10.0 MPa，阀可用电动或气动Pressure 0–10.0 MPa; electric or pneumatic valves
- 不锈钢楔形丝滤芯，低磨损、易清洗Stainless wedge wire elements — low wear, easy to clean
- 应用：船舶与海工、循环水、钢铁、造纸Applications: marine & offshore, circulating water, steel, paper

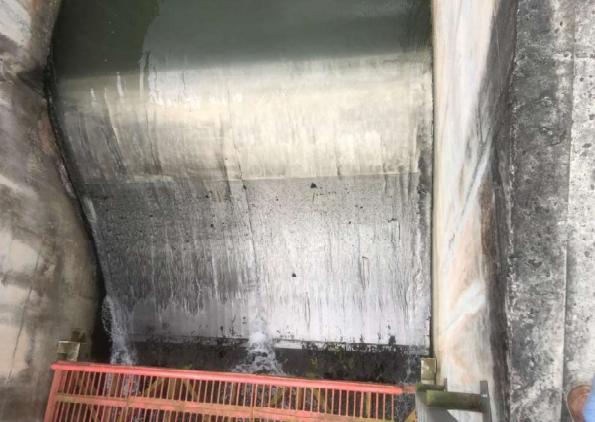

水力筛与弧形筛Hydrosieves & Arc Screens
无动力固液分离设备。废水经布水装置均匀分布到弧形筛面，固体被截留，滤液从缝隙流出，固体在水力作用下沿筛面向下排出。Gravity-driven separation equipment. Wastewater is spread evenly across the arc screen surface; solids are retained while filtrate passes through the slots, and solids are pushed down the surface by hydraulic force.
YLS 系列水力筛YLS-Series Hydrosieve
标准系列，用于预处理脱水、脱泥、脱介，降低水中悬浮物浓度。Standard series for pre-dewatering, desliming and media removal, reducing suspended solids.

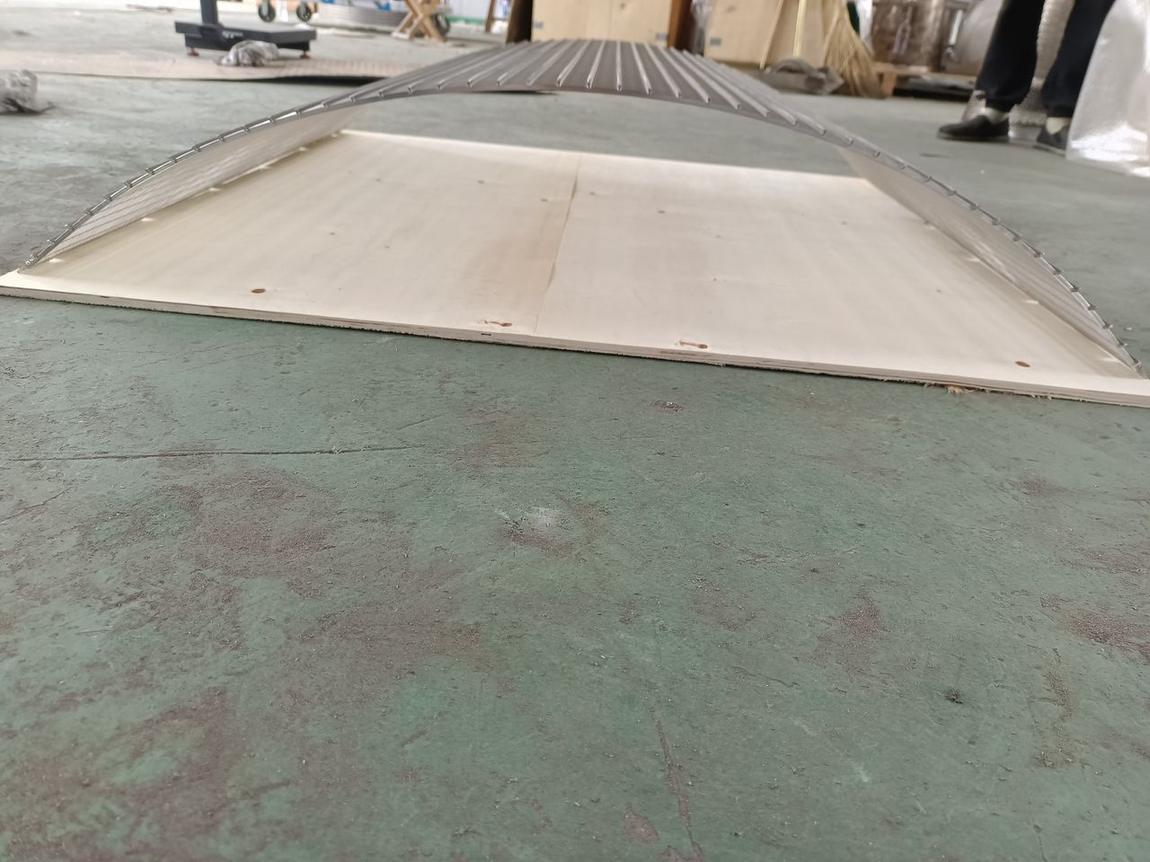

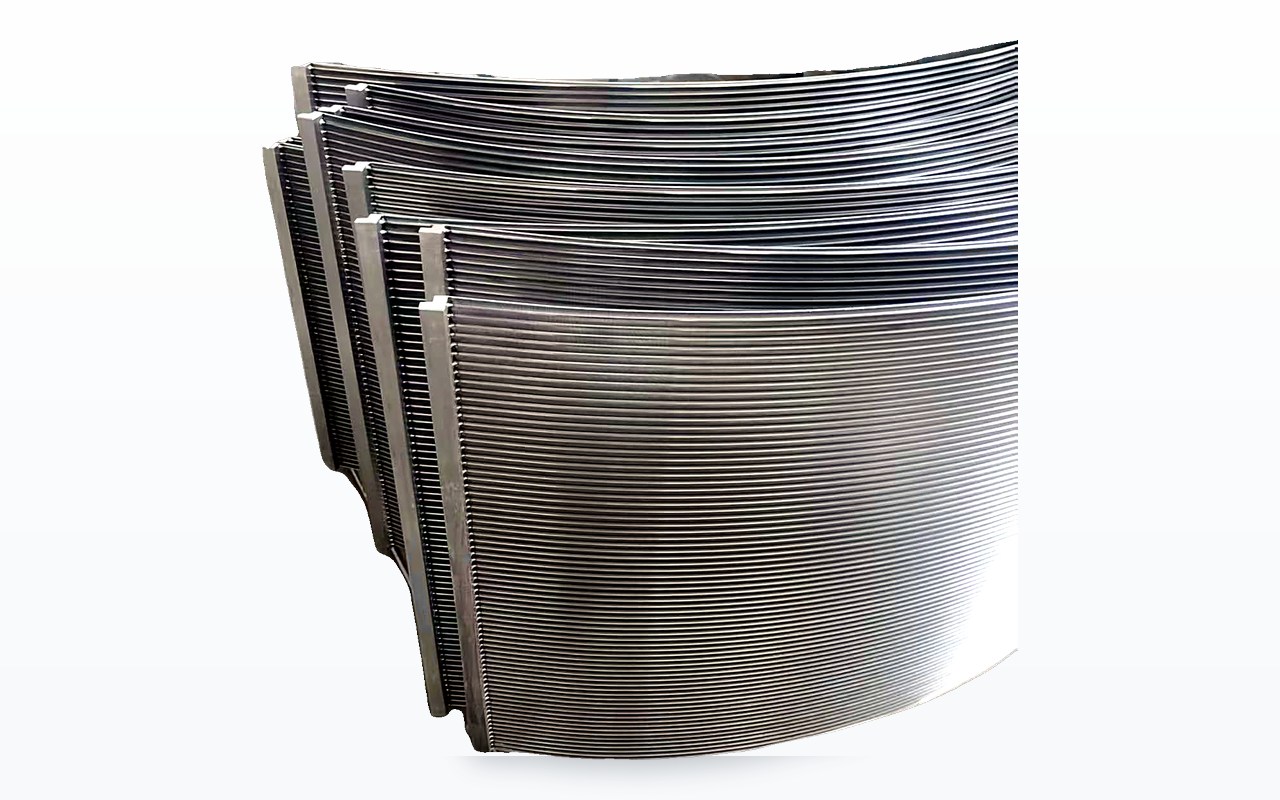

弧形水力筛Arc Screen
不锈钢楔形筛条制成弧形筛面，表面平整光滑、排水顺畅、不易阻塞。Stainless wedge-wire arc surface — smooth, free-draining and clog-resistant.
条缝筛 / 重力曲筛Slot Screen / Gravity Screen
用于纤维分级回收、物料或纤维分离回收，减少后续工序处理负荷。For fibre classification and recovery of materials, reducing downstream process load.
选型所需信息：物料名称、处理量、含固情况、需截留颗粒大小、筛缝要求、进出口尺寸、安装空间（现场照片或图纸更佳）。 Data required for sizing: medium name, throughput, solids content, particle size to be retained, slot requirement, inlet/outlet size and installation space (site photos or drawings preferred).
塔器与反应器内件Vessel & Reactor Internals
反应器与塔器内件承担过滤、分配与支撑三重职责，精度与直线度直接影响催化剂与填料的寿命。Internals perform three duties — filtration, distribution and support. Accuracy and straightness directly affect catalyst and packing service life.
扇形筒Scallop Tubes
V 型丝网与冲孔板两种结构V-wire mesh or perforated plate construction
- 强度高、表面光洁度好、环焊缝平整High strength, good surface finish, smooth girth welds
- 控制直线度，保证内件装配精度Straightness controlled to ensure assembly accuracy
- 用于催化重整、合成氨等工艺装置For catalytic reforming, ammonia synthesis and similar units
中心管 / 内筛Center Pipes / Inner Screens
径向流反应器的核心通气与过滤部件Core gas distribution and filtration component of radial-flow reactors
- 用于催化重整、苯乙烯、丙烷脱氢等装置For catalytic reforming, styrene, propane dehydrogenation units
- 内外双向过滤结构可选Inward or outward flow construction available
- 分段制造、现场对接，控件运输尺寸Sectional fabrication with on-site joining to control shipping size

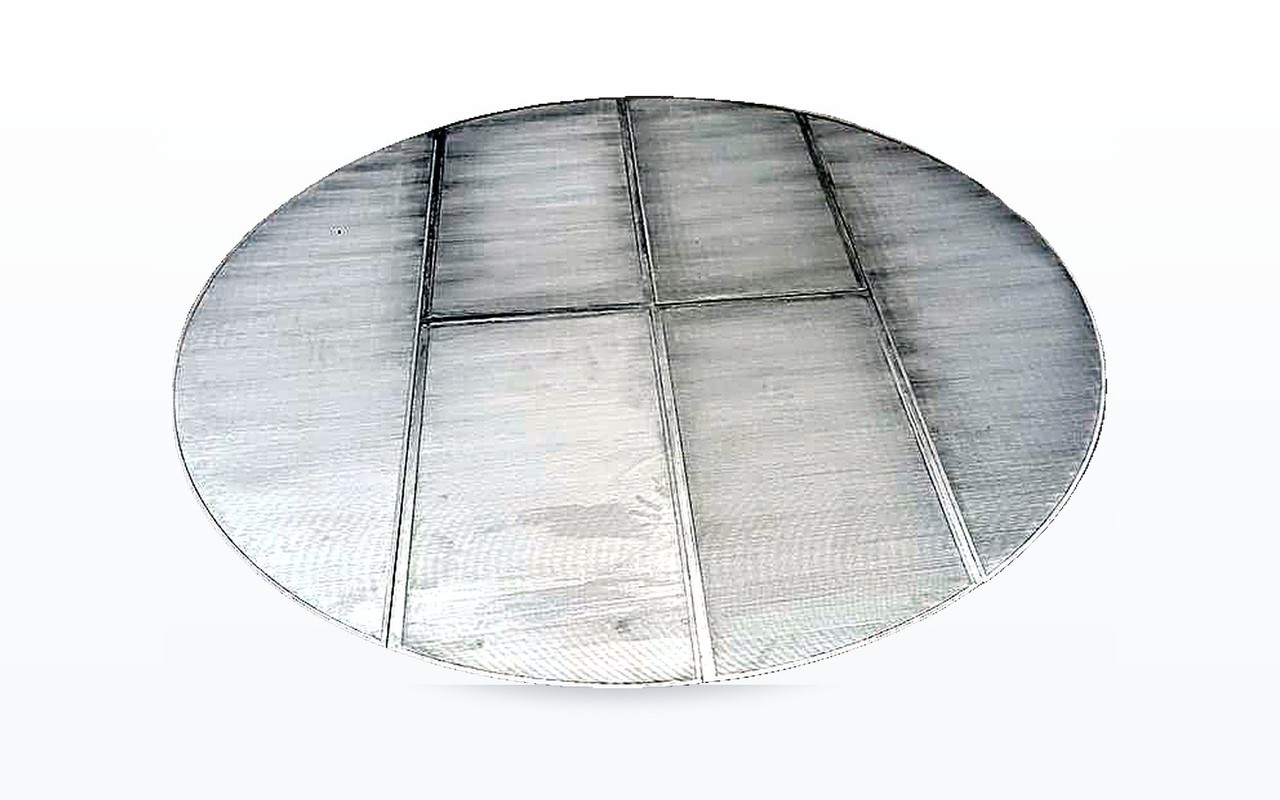

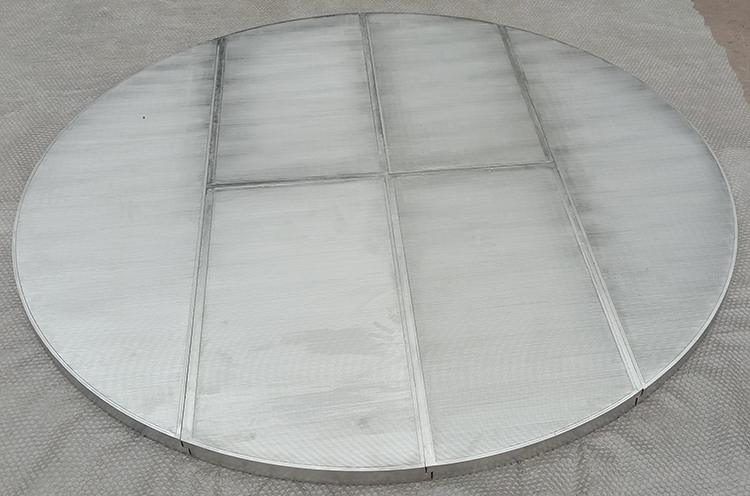

支撑格栅Support Grids
焊接楔形丝 + 支撑杆 + 金属格栅Welded wedge wire + support rods + metal grating
- 在反应器与塔内提供精确过滤与稳定支撑Precise filtration and stable support inside reactors and columns
- 防止高价值介质流失Prevents loss of high-value media
- 材质与缝隙按工况指定Material and slot specified per duty
浆料增稠器Slurry Thickener
浓集悬浮液中固体颗粒的沉降设备Settling equipment to concentrate suspended solids
- 锥形圆筒、方形、多层等结构型式Conical-cylindrical, square and multi-tray configurations
- 耙式集渣，沉渣向底部中部集中排出Rake mechanism concentrates sludge toward the bottom centre for discharge
- 按处理量与固含量定制Customized by throughput and solids content

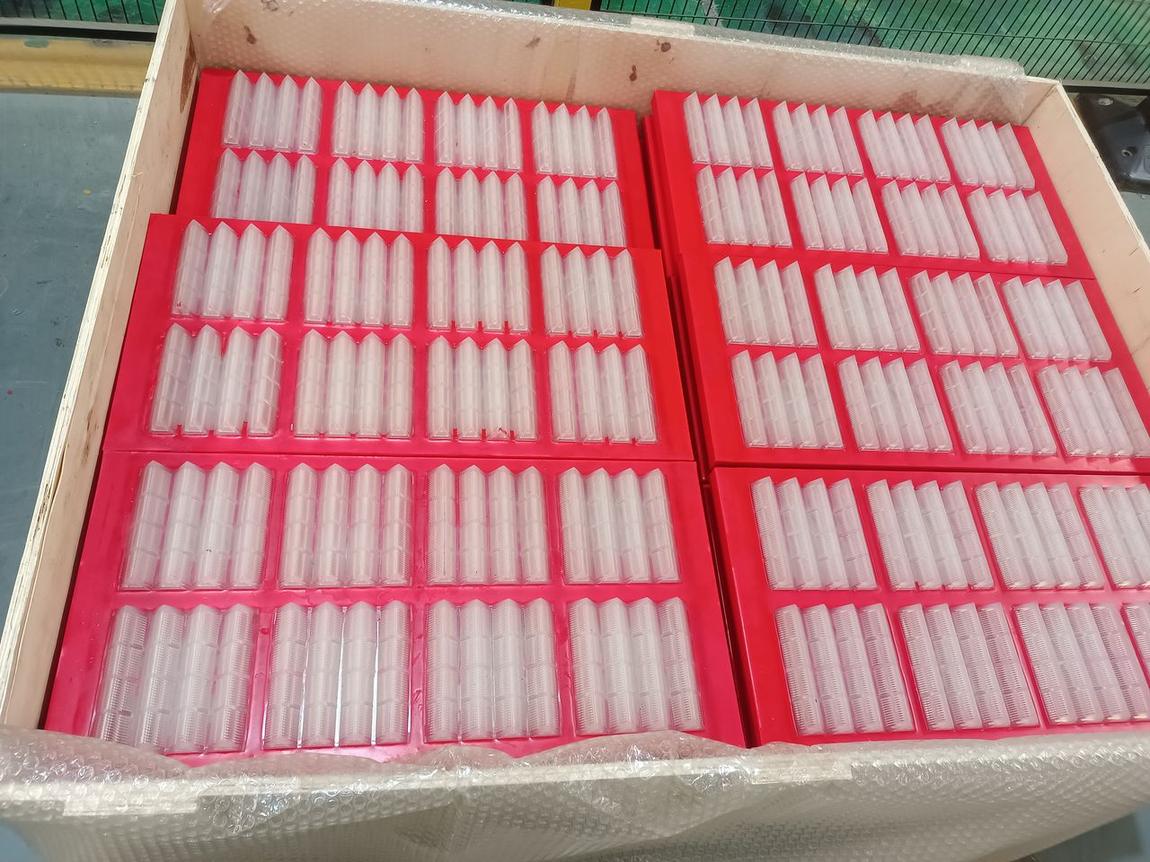

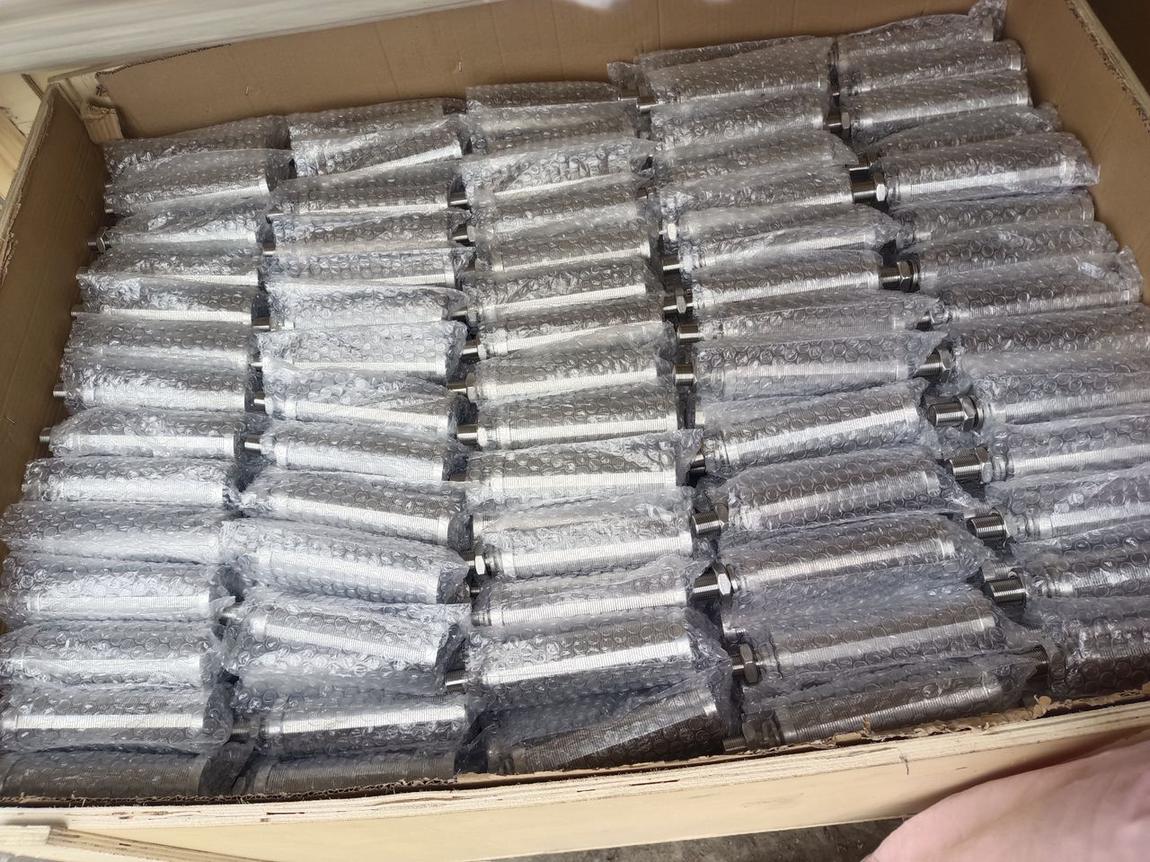

产品实拍Workshop Gallery
以下均为车间实拍照片。如需某类产品的高清细节图、检测报告或视频资料，可在询盘时注明。All photos taken in our workshop. For high-resolution detail shots, inspection reports or videos of a specific product type, mention it in your enquiry.
非标定制服务Custom Engineering Service
非标不等于随意：先确认工况边界，再确定结构，最后锁定可制造性。Custom does not mean arbitrary: confirm the duty envelope, define the structure, then lock manufacturability.
工况确认Duty Confirmation
介质名称、物性、颗粒分布、流量、精度、温度、压力、接口与安装空间。Medium, properties, particle distribution, flow, rating, temperature, pressure, connection and space.
结构与选材Structure & Material
缝隙、开孔率、丝型、支撑结构、密封方式与材质等级建议。Slot, open area, profile wire, support structure, sealing method and material grade recommendations.
出图与投产Drawing & Production
提供结构图纸与参数表确认，签字后投产，逐件检验并出具材质与尺寸记录。Structural drawing and datasheet issued for sign-off; piece-by-piece inspection with material and dimensional records.
没有找到完全匹配的规格？
按图定制通常比改管路更省事。No exact match in the list?
Custom fabrication is often easier than re-piping.
把图纸、样品照片或工况参数发给我们，工程师会给出可制造性判断与替代方案建议。Send a drawing, sample photo or process data — our engineers will advise on manufacturability and alternatives.
